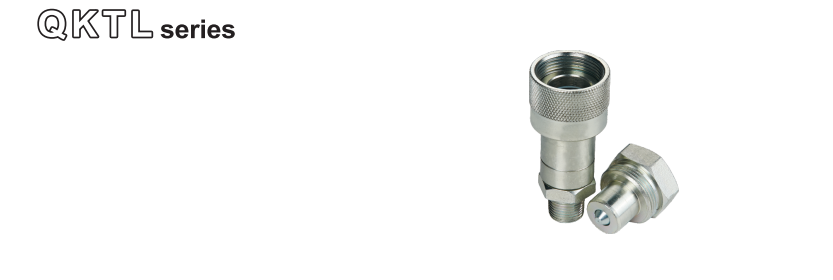

QKTL
NONE/QPE
Features
Connexion by screwing together the two part
Disconnexion by unscrewing the two parts
Shut off by poppet valve
Connectable under residual pressure
Disconnexion under residual pressure Interchangeability Germany Market
Technical Specifications
High grade carbon steel with heat
reated wear parts
NBR Backup ring in PTEE
Working Temp:-25°C to +125°C
(-130F to +2570F)
| Size | Working pressure | Flow Rate | Burst Pressures | |||
| mm | inch | MPa (PSI) | l/min (GPM) | MPa (PSI) plug | MPa (PSI) socket | MPa (PSI) conencted |
| 6.3 | 1/4" | 103（14935） | 15(3.96) | 350(50750) | 310(44950) | 330(47850) |
| 10 | 3/8" | 100（14500） | 20(5.28) | 350(50750) | 310(47850) | 300(43500) |
| Part No | Thread | E | F | G | Part No | Thread | E | F | G |
| (mm.) | (mm.) | (mm.) | (in.) | (in.) | (in.) | ||||
| QKTL-02SFM | NPT1/4 | 60 | 21 | 29 | QKTL-N02SFM-B | NPT1/4 | 2.38 | 0.81 | 1.13 |
| QKTL-03SFM | NPT3/8 | 73 | 25 | 35 | QKTL-N03SFM-B | NPT3/8 | 2.88 | 1 | 1.38 |
| part No | Thread | A | C | D | Part No | Thread | A | C | D |
| (mm.) | (mm.) | (mm.) | (in.) | (in.) | (in.) | ||||
| QKTL-02PF | NPT1/4 | 33 | 29 | 15.8 | QKTL-N02PF-B | NPT1/4 | 1.29 | 0.75 | 0.62 |
| QKTL-03PF | NPT3/8 | 40 | 32 | 19 | QKTL-NO3PF-B | NPT3/8 | 1.58 | 0.94 | 0.75 |
Features
Connexion by screwing together the two part
Disconnexion by unscrewing the two parts
Shut off by poppet valve
Connectable under residual pressure
Disconnexion under residual pressure Interchangeability Germany Market
Technical Specifications
High grade carbon steel with heat
reated wear parts
NBR Backup ring in PTEE
Working Temp:-25°C to +125°C
(-130F to +2570F)
| Size | Working pressure | Flow Rate | Burst Pressures | |||
| mm | inch | MPa (PSI) | l/min (GPM) | MPa (PSI) plug | MPa (PSI) socket | MPa (PSI) conencted |
| 6.3 | 1/4" | 103（14935） | 15(3.96) | 350(50750) | 310(44950) | 330(47850) |
| 10 | 3/8" | 100（14500） | 20(5.28) | 350(50750) | 310(47850) | 300(43500) |
| Part No | Thread | E | F | G | Part No | Thread | E | F | G |
| (mm.) | (mm.) | (mm.) | (in.) | (in.) | (in.) | ||||
| QKTL-02SFM | NPT1/4 | 60 | 21 | 29 | QKTL-N02SFM-B | NPT1/4 | 2.38 | 0.81 | 1.13 |
| QKTL-03SFM | NPT3/8 | 73 | 25 | 35 | QKTL-N03SFM-B | NPT3/8 | 2.88 | 1 | 1.38 |
| part No | Thread | A | C | D | Part No | Thread | A | C | D |
| (mm.) | (mm.) | (mm.) | (in.) | (in.) | (in.) | ||||
| QKTL-02PF | NPT1/4 | 33 | 29 | 15.8 | QKTL-N02PF-B | NPT1/4 | 1.29 | 0.75 | 0.62 |
| QKTL-03PF | NPT3/8 | 40 | 32 | 19 | QKTL-NO3PF-B | NPT3/8 | 1.58 | 0.94 | 0.75 |
