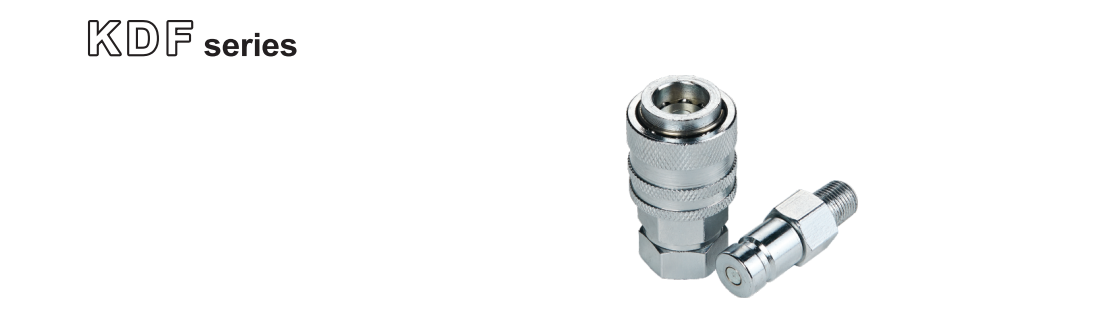

KDF
NONE/QPE
Features
Connexion by pushing the male coupling
Disconnexion by pulling back the female sleeve
Shut off by flat face valve
Connexion under pressure not allowed
Disconnexion under pressure not allowed
Interchangeability according to ISO 15171-1
No spillage during Connexion and Disconnexion
Technical Specifications
High grade carbon steel with heat treated wear parts
NBR Backup ring in PTFE
Working Temp:-25°C to +125°C (-13°F to +257")
| Size | Working pressure | Flow Rate | Burst Pressures | |||
| mm | inch | MPa (PSI) | l/min (GPM) | MPa (PSI) plug | MPa (PSI) socket | MPa (PSI) conencted |
| 6.3 | 1/4" | 47 (6851) | 2(0.53) | 150(21750) | 190(27550) | 180 (25700) |
Part No. 订货号 | Thread 螺纹 | E | F | G |
(in.) | (in.) | (in.) | ||
KDF-N01SF | NPT1/8 | 1.65 | 0.83 | 24 |
KDF-N02SF | NPT1/4 | 1.97 | 0.83 | 24 |
KDF-7/16UNFSF | UNF7/16 | 2.13 | 0.83 | 24 |
KSN-KDF-9/16UNFSF | UNF9/16 | 2.13 | 0.83 | 24 |
KSN-KDF-M14SF | M14X1.5 | 2.03 | 0.83 | 24 |
Part No. 订货号 | Thread 螺纹 | A | C | D |
(in.) | (in-) | (in.) | ||
KDF-N01PF | NPT1/8 | 1.42 | 0.75 | 0.5 |
KDF-N02PF | NPT1/4 | 1.57 | 0.75 | 0.5 |
KDF-7/16UNFPF | UNF7/16 | 1.61 | 0.75 | 0.5 |
KSN-KDF-9/16UNFPF | UNF9/16 | 1.61 | 0.75 | 0.5 |
KSN-KDF-M14PF | M14X1.5 | 1.61 | 0.75 | 0.5 |
