KCV THREAD TO CONNECT DOUBLE SHUT OFF COUPLINGS

KCV THREAD TO CONNECT DOUBLE SHUT OFF COUPLINGS

INTERCHANGE WITH FASTER CVV ,DIXON CVV, DNP PVV3 ,PARKER QHPA, INTEVA STG ,VOSWINKEL HS, TCH GERMANY 65, ARGUS HDK,
Availability:
Inquire

  • KCV

  • NONE/QPE

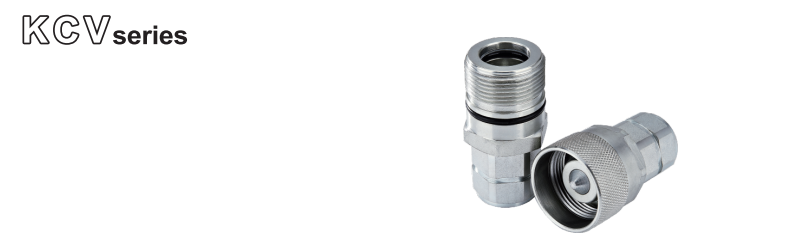

微信图片_20230726142549

Features

Connexion by screwing together the two parts

Disconnexion by unscrewing the two parts

Shut off by poppet valve

Connectable under residual pressure Disconnexion under residual pressure

Interchangeability German Marke


Technical Specifications

High grade carbon steel with heat ated wear part NBR

Backup ring in PTE

25°℃ to+125℃

(-130F to+257°F）


Size
 Working pressure Flow Rate Burst Pressures
mm inch MPa (PSI) l/min (GPM) MPa (PSI) plug MPa (PSI) socket MPa (PSI)  conencted
6.3 1/4" 50(7500) 13(3.3) 150(22500) 160(24000) 170(24200)
10 3/8" 40(5700) 25(6.5) 120(17100) 130(18600) 170(24200)
12.5 1/2" 40(5700) 75(19.8) 120(17100) 140(20000) 140(20000)
20 3/4" 35(5000) 135(35.2) 110(15700) 120(17100) 140(20000)
25 1" 35(5000) 250(66.1) 110(15700) 430118600 140(20000)
40 11/2" 35(5000) 450(119) 110(15700) 110(15700) 110(15700)

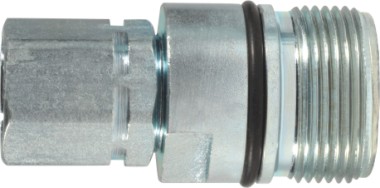

119图片3

Part No. Thread E
G Part No Thread E F G
(mm. (mm.) (mm.) 订货号 螺纹 (in.) (in.) (in.)
KCV-02SF G1/4 58 19 13.1 KCV-N02SF NPT1/4 2.28 0.75 0.52
KCV-03SF G3/8 65 24 17.6 KCVNo2er NPT3/8 2.55 0.94 0.69
KCV-04SF G1/2 67 27 22 KCV-N04SF NPT1/2 2.63 1.06 0.87
KCV-06SF G3/4 83 38 28.1 KCV-N06SF NPT3/4 3.27 1.5 1.11
KCV-08SF G1 95 42 35 KCV-N08SF NPT1 3.74 1.65 1.38
KCV-12-10SF G11/4 110 50 54 KCV-12-N10SF NPT11/4 4.33 1.97 2.13
KCV-12SF G11/2 121 55 54 KCV-N12SF NPT11/2 4.76 2.17 2.13

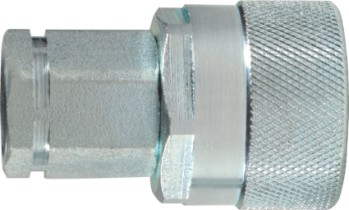

120图片4

Part No. Thread A C D Part No. Thread A C D


(mm.) (mm.) (mm.)

(in.) (in.) (in.)
KCV-02PF G1/4 64 19 30 KCV-N02PF NPT1/4 2.52 0.75 1.18
KCV-03PF G3/8 68 24 34 KCV-N03PF NPT3/8 2.68 0.94 1.34
KCV-04PF G1/2 68 27 42 KCV-N₀4PF NPT1/2 2.68 1.06 1.65
KCV-06PF C3/4 85 38 48 KCV-N06PF NPT3/4 3.34 1.5 1.89
KCV-08PF G1 95 42 56 KCV-N08PF NPT1 3.74 1.65 2.2
KCV-12-10PF G11/4 131 50 80 KCV-12-N10PF NPT11/4 5.16 1.97 3.15
KCV-12PF G11/2 131 55 80 KCV-N12PF NPT11/2 5.16 2.17 3.15

图片5图片6

Part No Thread E F G

(mm.)

(mm.)
KCV-02SM-1408 M14X1.5 59 19 13.1
KCV-03SM-1610 M16X1.5 68 24 17.6
KCV-04SM-1812 M18X1.5 58 27 22
KCV-04SM-2215 M22X1.5 59 27 22
KCV-06SM-2618 M26X1.5 81 36 28.1
KCV-06SM-3022 M30X2.0 84 36 28.1
KCV-08SM-3022 M30X2.0 89 42 35
KCV-08SM-3628 M36X2.0 93 42 35
KCV-12SM-4230 M42X2.0 112 55 54
KCV-12SM-4235 M52X2.0 113 55 54

图片7图片8

part No Thread A C D


(mm.) (mm.) (mm.)
KCV-02PM-1408 M14X1.5 59 19 30
KCV-03PM-1610 M16X1.5 68 24 34
KCV-04PM-1812 M18X1.5 64 27 42
KCV-04PM-2215 M22X1.5 65 27 42
KCV-06PM-2618 M26X1.5 84 36 48
KCV-06PM-3022 M30X2.0 84 36 48
KCV-08PM-3022 M30X2.0 89 42 56
KCV-08PM-3628 M36X2.0 89 42 56
KCV-12PM-4230 M42X2.0 131 55 80
KCV-12PM-4235 M52X2.0 131 55 80

图片9图片10

Part No Thread E F G

(mm.)

(mm.)
KCV-02SM-1408-L M14X1.5 72 19 30
KCV-03SM-1610-L M16X1.5 78 24 34
KCV-04SM-1812-L M18X1.5 80 27 42
KCV-04SM-2215-L M22X1.5 81 27 42
KCV-06SM-2618-L M26X1.5 97 36 48
KCV-06SM-3022-L M30X2.0 104 36 48
KCV-08SM-3022-L M30X2.0 117 42 56
KCV-08SM-3628-L M36X2.0 121 42 56
KCV-12SM-4230-L M42X2.0 133 55 80
KCV-12SM-4235.1 M⁵2X2.0 133 55 80

图片11图片12

part No Thread A C D


(mm.) (mm.) (mm.)
KCV-02PM-1408-L M14X1.5 73 19 30
KCV-03PM-1610-L M16X1.5 75 24 34
KCV-04PM-1812-L M18X1.5 75 27 42
KCV-04PM-2215-L M22X1.5 78.5 27 42
KCV-06PM-2618-L M26X1.5 90 36 48
KCV-06PM-3022-L M30X2.0 97 36 48
KCV-08PM-3022-L M30X2.0 1025 42 56
KCV-08PM-3628-L M36X2.0 102.5 42 56
KCV-12PM-4230-L M42X2.0 137 55 80
KCV-12PM-4235-L M52X2.0 147 55 80
