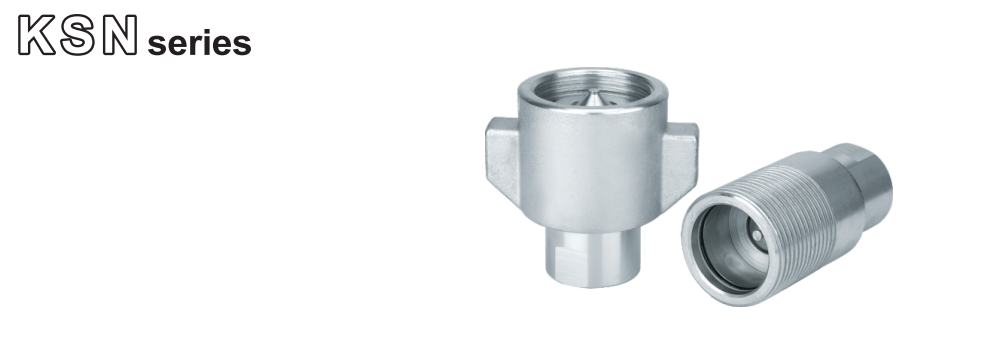

KSN
NONE/QPE/CUSTOMISED
Features
Connexion by screwing together the two parts
Disconnexion by unscrewing the two parts
Shut off by poppet valve
Connectable under residual pressure
Disconnexion under residual pressure
Interchangeability according to Snaptite internal Standards
Technical Specifications
High grade carbon steel tempered or carbonitrited for specific stressed area
NBR Backup ring in PTFE
Working Temp:-25°C to +125°C (-13°F to +257°F)
| Size | Working pressure | Flow Rate | Burst Pressures | |||
| mm | inch | MPa (PSI) | l/min (GPM) | MPa (PSI) plug | MPa (PSI) socket | MPa (PSI) conencted |
| 20 | 3/4” | 73 (10600) | 55（14.7） | 220(31900) | 230(33400) | 230(33400) |
| 25 | 1” | 63 (9150) | 100(26) | 240(34800) | 190(27600) | 190(27600) |
| 32 | 1 1/4" | 60 (8700) | 140(37) | 180(26100) | 180(26100) | 200(29000) |
| 40 | 1 1/2" | 40 (5800) | 300(79) | 150(21800) | 120(17100) | 150(21800) |
| 50 | 2” | 35 (5000) | 1000(264) | 130(18600) | 130(18600) | 105(15250) |

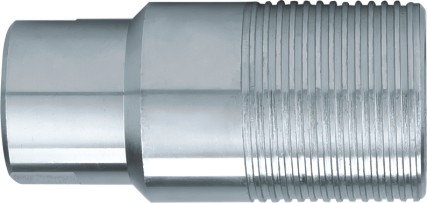

| Part No. | Thread | A | C | D |
| (in.) | (in.】 | (in, | ||
| KSN-N06PF | NPT3/4 | 2.84 | 1.87 | 1.35 |
| KSN-N08PF | NPT1 | 3.45 | 2.75 | 1.77 |
| KSN-N10PF | NPT11/4 | 4.4 | 3.25 | 2.14 |
| KSN-N12PF | NPT11/2 | 5.04 | 3.75 | 2.5 |
| KSN-N16PF | NPT2 | 6.07 | 4.75 | 3.25 |

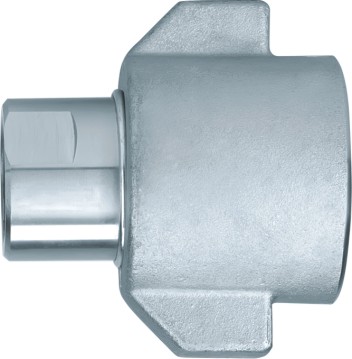

| Part No. | Thread | E | F | G |
| (in.) | (in.】 | (in, | ||
| KSN-N06SF | NPT3/4 | 1.75 | 1.35 | 3.27 |
| KSN-N08SF | NPT1 | 2.25 | 1.77 | 4.17 |
| KSN-N10SF | NPT11/4 | 2.62 | 2.14 | 5.36 |
| KSN-N12SF | NPT11/2 | 3.24 | 2.5 | 5.97 |
| KSN-N16SF | NPT2 | 4 | 3.25 | 7.05 |
