ISO 7241 B SERIES (CARBON STEEL)

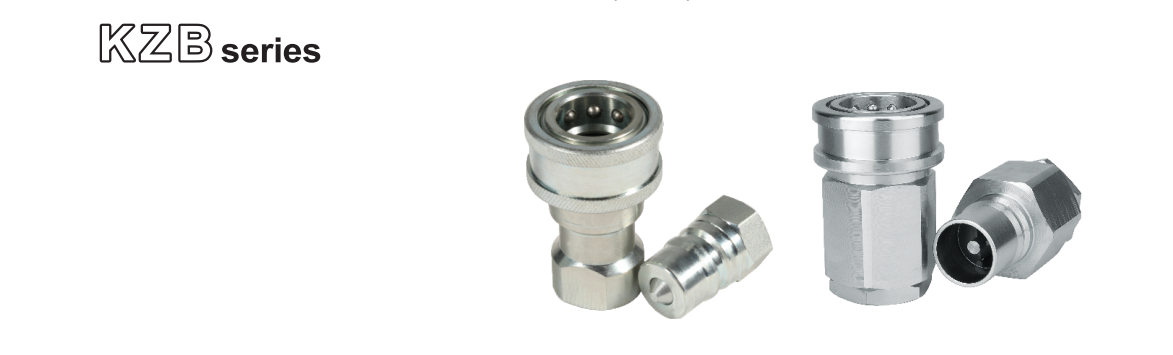

ISO 7241 B CARBON STEEL(DESIGNED DOUBLE O-RING IN COUPLER) INTERCHANGE WITH PARKER 60 FASTER HNV FOSTER HX-S HANSEN HK SAFEWAY S10 AEROQUIP FD-45 CEJN X75
Availability:
Inquire

  • KZB

  • NONE/QPE

1601184830(1)

Features

Connexion by pulling back the sleeve

Disconnexion by pulling back the female sleeve

Shut off by poppet valve

Connexion under pressure not allowed

Disconnexion under pressure not allowed

Interchangeability according to ISO 7241-1 Part B


Technical Specifications


High grade carbon steel with heat treated wear parts

NBR Backup ring in PTFE(sealing can be choosen）

Working Temp:-25°C to +125°C(-13°F to +257°F)


Size
 Working pressure Flow Rate                            Burst Pressures
mm inch MPa (PSI) l/min (GPM) MPa (PSI) plug MPa (PSI) socket MPa (PSI)  conencted
3 1/8W 50 (7500) 5 (1.3) 200 (30000) 280 (42000) 200 (30000)
6.3 1/4" 45 (6750) 17 (4.5) 180 (27000) 180 (27000) 200 (30000)
10 3/8” 30 (4500) 50 (13.2) 180 (27000) 13D (19500) 120 (18000)
12.5 1/2W 35 (5250) 75 (19.8) 150 (22500) 140 (21000) 140 (21000)
20 3/4" 25 (3625) 190 (50.2) 100 (14500) 110 (16500) 100 (14500)
25 1" 30 (4500) 270 (71.4) 120 (18000) 120 (18000) 120 (18000)
40 1 1/2" 14 (2100) 750 (198.4) 60 (9000) 56 (8400) 56 (8400)
50 2" 9 (1350) 1600 (423.3) 45 (6750) 38 (5700) 40 (6000)

25图片2

Part No.

订货号

Thread

螺纹

E

F

G

Part No.

订货号

Thread

螺纹

E

F

G


(mm.)

(mm.)

(mm.)

(in.)

(in.)

(in-)

KZB-01SF

G1/8

48.0

17.0

24.0

KZB-N01SF

NPT1/8

1.90

0.68

0.96

KZB-02SF

G1/4

57.0

21.0

29.0

KZB-N02SF

NPT1/4

2.26

0.81

1.14

KZB-03SF

G3/8

63.0

22.0

36.0

KZB-N03SF

NPT3/8

2.49

0.88

1.40

KZB-04SF

G1/2

73.0

28.0

45.0

KZB-N04SF

NPT1/2

2.87

1.12

1.77

KZB-06SF

G3/4

90.0

33.0

54.0

KZB-N06SF

NPT3/4

3.56

1.31

2.14

KZB-08SF

G1

106.0

41.0

64.0

KZB-N08SF

NPT1

4.18

1.62

2.52

26图片3

Part No.

订货号

Thread

螺纹

A

C

D

Part No.

订货号

Thread

螺纹

A

C

D


(mm.)

(mm.)

(mm.)

(in.)

(in.)

(in.)

KZB-01PF

G1/8

41.0

14.0

17.0

KZB-N01PF

NPT1/8

1.61

0.56

0.65

KZB-02PF

G1/4

35.0

19.0

22.0

KZB-N02PF

NPT1/4

1.39

0.75

0.87

KZB-03PF

G3/8

38.0

22.0

26.0

KZB-N03PF

NPT3/8

1.50

0.88

1.01

KZB-04PF

G1/2

44.0

28.0

33.0

KZB-N04PF

NPT1/2

1.75

1.12

1.30

KZB-06PF

G3/4

55.0

35.0

40.0

KZB-N06PF

NPT3/4

2.16

1.38

1.59

KZB-08PF

G1

74.0

41.0

48.0

KZB-N08PF

NPT1

2.91

1.62

1.88



32图片4

Part No.

订货号

Thread

螺纹

E

F

G

Part No.

订货号

Thread

螺纹

E

F

G


(mm.)

(mm.)

(mm.)

(in.)

(in.)

(in.)

KZB12-10SF

G1 1/4

123.5

60

76.5

KZB12-N10SF

NPT11/4

4.85

2.36

3.00

KZB12-12SF

G1 1/2

127.5

60

76.5

KZB12-N12SF

NPT11/2

5.01

2.36

3.00

KZB16-16SF

G2

145

95

101

KZB16-N16SF

NPT2

5.7

3.74

3.98

KZB16-20SF

G2 1/2

153.5

95

104.5

KZB16-N20SF

NPT2 1/2

6.04

3.75

4.10

KZB16-24SF

G 3

176.5

101.5

110.5

KZB16-N24SF

NPT3

6.96

4.00

4.35

50图片5

Part No.

订货号

Thread

螺纹

A

C

D

Part No.

订货号

Thread

螺纹

A

C

D


(mm.)

(mm.)

(mm.)

(in.)

(in.)

(in.)

KZB12 -10PF

G1 1/4

121

60.0

74.5

KZB12-N10PF

NPT1 1/4

4.75

2.35

2.95

KZB12-12PF

G1 1/2

124.5

60.0

74.5

KZB12-N12PF

NPT1 1/2

4.90

2.35

2.95

KZB16-16PF

G2

142.5

95.0

104.5

KZB16-N16PF

NPT2

5.65

3.75

4.10

KZB16-20PF

G2 1/2

151.5

95.0

104.5

KZB16-N20PF

NPT2 1/2

5.95

3.75

4.10

KZB16-24PF

G 3

175.0

101.5

111.5

KZB16-N24PF

NPT3

6.87

4.00

4.39
