MOLD COOLANT-LINE QUICK COUPLINGS

MOLD COOLANT-LINE QUICK COUPLINGS,SINGLE/NON SHUT OFF QUICK COUPLINGS
INDUSTRY STANDARD COMPLY WITH PARKER MOLDMATE SERIES

INTERCHANGE WITH PAEKER MOLDMATE DME JIFFY-TITE-JEFFY-MATIC RECTUS86/87/88 FOSTER FJT HANSEN FLO-TEMP DIXON CM SERIES
Availability:
Inquire

  • PC

  • NONE/QPE

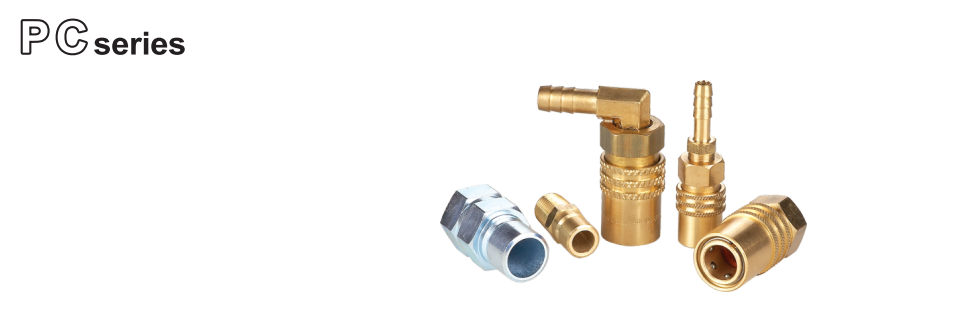

微信图片_20230726204329

Features

Connexion by pulling back the sleeve

Disconnexion by pulling back the emale sleeve

Connexion under pressure not allowed

Disconnexion under pressure not allowed

Interchangeability Usa Market


Technical Specifications


Brass

SILICONE/Viton is available on request

Working Temp:68℃ to+205℃


Size
 Working pressure Flow Rate Burst Pressures
mm inch MPa (PSI) l/min (GPM) MPa (PSI) plug MPa (PSI) socket MPa (PSI)  conencted
6.3 1/4" 15(2175) 16(4.2 45(6525) 45(6525) 45(6525)
10 3/8" 15(2175) 25(6.6) 45(6525) 45(6525) 45(6525)
12.5 1/2B 15(2175) 60(15.9) 45(6525) 45(6525) 45(6525)

PC-4微信图片_20230726205814

Part No Thread A B C


(in.) (in.) (in.)
PC200 1/4 1/4 1.15 0.56
PC300 3/8 3/8 1.84 0.88
PC500 1/2 1/2 2.02 1.12


PC-3微信图片_20230726205806

Part No Hose A B C


(in.) (in.) (in.)
PC214 1/4 1.78 0.56 0.71
PC215 5/16 1.78 0.56 0.71
PC216 3/8 1.78 0.56 0.71
PC316 3/8 2.78 0.88 0.96
PC318 1/2 2.78 0.88 0.96
PC514 1/2 3.5 1.12 1.3
PC516 3/4 3.5 1.12 1.21

PC-2微信图片_20230726205757

Part No Hose A B C


(in.) (in.) (in.)
PC224 1/4 2.67 0.56 0.71
PC225 5/16 2.69 0.56 0.71
PC226 3/8 2.71 0.56 0.71
PC326 3/8 3.65 0.88 0.96
PC320 1/2 3.69 0.88 0.96
PC524 1/2 4.18 1.12 1.3
PC526 3/4 4.56 1.12 1.21

PC-1微信图片_20230726205745

Part No Hose A B C


(in.) (in.) (in.)
PC204 1/4 2.1 0.62 0.71
PC205 5/16 2.1 0.62 0.71
PC206 3/8 2.1 0.62 0.71
PC306 3/8 3.01 0.88 0.96
PC308 1/2 3.15 0.88 0.96
PC504 1/2 3.55 1.12 1.3
PC506 3/4 3.8 1.12 1.21


PN微信图片_20230726205850

Part No Thread D E F G A B
NPT (in.) (in.) (in.) (in.) (in.) (in.)
PN251 1/8 0.94 0.54 0.44 0.51 0.69 0.69
PN252 1/4 1.13 0.74 0.56 0.67 0.84 0.94
PN253 3/8 1.19 0.79 0.69 0.79 1.00 0.94
PN352 1/4 1.34 0.74 0.56 0.65 1.00 1.09
PN353 3/8 1.38 0.78 0.69 0.59 1.00 1.13
PN354 1/2 1.59 0.99 0.88 1.01 1.19 1.25
PN554 1/2 1.69 0.92 0.88 1.01 1.25 1.5
PN556 3/4 1.75 0.99 1.12 1.3 1.5 1.56

MP-F微信图片_20230726205830

Part No Thread A B C

NPT (in. (in. (in.
MP251F 1/8 0.97 0.58 0.58
MP252F 1/4 1.28 0.89 0.72
MP253F 3/8 1.41 1.02 0.87
MP352F 1/4 1.48 0.88 0.72
MP353F 3/8 1.58 0.98 0.87
MP354F 1/2


MP356F 3/4



Valved

PC-4微信图片_20230726205814

Part No. Thread A B C

(in.) (in.) (in.)
PC200V 1/8 1.15 0.56 0.71
PC300V 1/4 1.84 0.88 0.96

PN微信图片_20230726205913

Part No ThroaD D E F G

NPT (in.) (in.) (in.) (in.)
PN252V 1/4 1.13 0.74 0.56 0.67
PN352V 1/4 1.34 0.74 0.56 0.65
PN353V 3/8 1.38 0.78 0.69 0.59
