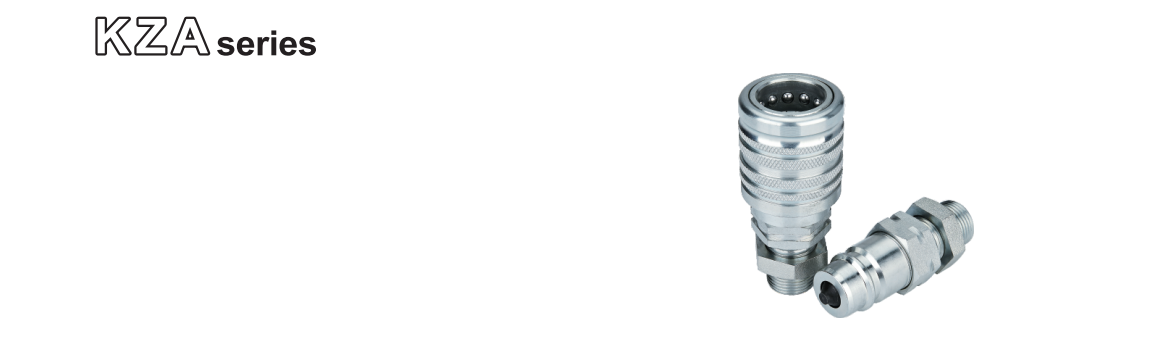

ISO 5675 PUSH PULL DOUBLE SHUT OFF COUPLINGS (CARBON STEEL)

ISO 5675 CARBON STEEL INTERCHANGE WITH PARKER 4200 , FASTER CPV-CNV ,SAFEWAY S40 ,DNP PPV, BRECO CD.
Availability:
Inquire

  • KZA

  • NONE/QPE

1601188671(1)

Features

Connexion by pushing the male coupling

Disconnexion by pulling the male part

Shut off by poppet valve

Connectable with male part (ISO A) under pressure

Disconnexion under pressure not allowed. Breakaway function according to ISO 5675

1/2 size interchangeability according to ISO 7241-A.


Technical Specifications

High grade carbon steel with heat treated wear parts

NBR Backup ring in PTFE(sealings can be choosen)

Woring Temp-25°C to +125°C(-13°F to +257°F)


Size
 Working pressure Flow Rate                          Burst Pressures
mm inch MPa (PSI) l/min (GPM) MPa (PSI) plug MPa (PSI) socket MPa (PSI)  conencted
10 3/8" 27 (3800) 24 (6.2) 115 (16400) 130 (18600) 110 (15700)
12.5 1/2" 30 (4300) 75 (19.8) 120 (17100) 120 (17100) 120 (17100)
25 1" 22 (3150) 270 (71.4) 110 (15700) 110 (15700) 90 (12900)


KZA-SF     图片8

Part No.

订货号

Thread

螺纹

E

F

G

Part No.

订货号

Thread

螺纹

E

F

G


(mm.)

(mm.)

(mm.)

(in.)

(in.)

(in.)

KZA-03SF

G3/8

59

24

33

KZA-N03SF

NPT3/8

2.31

0.94

1.31

KZA-04SF

G1/2

68

27

38

KZA-N04SF

NPT1/2

2.68

1.06

1.50

KZA-22SF

M22X1.5

68

27

38

KZA-22SF

MPT22X1.2

2.68

1.06

1.50

KZA-08SF

G1

101

42

54

KZA-08PF

G1

3.98

1.65

2.13


KZA-PF     图片9

Part No.

订货号

Thread

螺纹

A

C

D

Part No.

订货号

Thread

螺纹

A

C

D


(mm.)

(mm.)

(mm.)

(in.)

(in.)

(in.)

KZA-03PF

G3/8

41

24

27

KZA-N03PF

NPT3/8

1.60

0.94

1.08

KZA-04PF

G1/2

50

27

31

KZA-N04PF

NPT1/2

1.95

1.06

1.23

KZA-22PF

M22X1.5

50

27

31

KZA-22PF

M22X1.5

1.95

1.06

1.23

KZA-08PF

G1

72

38

44

KZA-N08PF

NPT1

2.95

1.50

1.73


KZA-SF-M  图片10

Part No.

订货号

Thread

螺纹

E

F

G


,T

(mm.)

(mm.)

(mm.)

KZA-14SF-M

M 14x1.5

0.8L

72

27

38

KZA-16SF-M

M 16x1.5

10L

72

27

38

KZA-18SF-M

M18x1.5

12L

72

27

38

KZA-22SF-M

M22X1.5

15L

72

27

38

KZA-24SF-M

M24x1.5

16L

72

27

38

KZA-26SF-M

M26x1.5

18L

72

30

38

KZA-30SF-M

M30x2

20L

72

30

38


KZA-PF-M    图片11

Part No.

订货号

Thread

螺纹

A

C

D


T

(mm.)

(mm.)

(mm.)

KZA-14PF-M

M14x1.5

0.8L

56

27

31

KZA-16PF-M

M16x1.5

10L

56

27

31

KZA-18PF-M

M18X1.5

12L

56

27

31

KZA-22PF-M

M22x1.5

15L

56

27

31

KZA-24PF-M

M24x1.5

16L

58

27

31

KZA-26PF-M

M26x1.5

18L

60

30

34

KZA-30PF-M

M30x2

20L

62

30

34


63     图片12

Part No.

订货号

Thread

螺纹

E

F

G


0T

(mm.)

(mm.)

(mm.)

KZA-14SF-ML

M14x1.5

0.8L

85

27

38

KZA-16SF-ML

M16x1.5

10L

85

27

38

KZA-18SF-ML

M18x1.5

12L

85

27

38

KZA-22SF-ML

M22x1.5

15L

86

27

38

KZA-24SF-ML

M24X1.5

16L

86

27

38

KZA-26SF-ML

M26x1.5

18L

88

30

38

KZA-30SF-ML

M30x2

20L

88

30

38


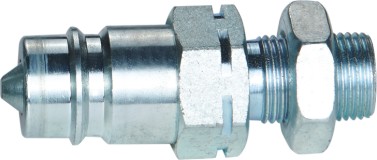

64     图片13

Part No.

订货号

Thread

螺纹

A

C

D


0T

(mm.)

(mm.)

(mm.)

KZA-14PF-ML

M14x1.5

0.8L

72

27

31

KZA-16PF-ML

M16x1.5

10L

72

27

31

KZA-18PF-ML

M18x1.5

12L

72

27

31

KZA-22PF-ML

M22x1.5

15L

73

27

31

KZA-24PF-ML

M24X1.5

16L

75

27

31

KZA-26PF-ML

M26x1.5

18L

75

30

34

KZA-30PF-ML

M30x2

20L

75

30

34


KZA-SF-M     图片10

Part No.

订货号

Thread

螺纹

E

F

G


(mm.)

(mm.)

(mm.)

KZA-14SF-MW

G3/8

73

27

38

KZA-16SF-MW

G1/2

76

27

38

KZA-18SF-MW

M 16x1.5

70

27

38

KZA-22SF-MW

20x1.5

75

27

38

KZA-24SF-MW

22x1.5

73

27

38

KZA-PF-M     图片11

Part No.

订货号

Thread

螺纹

A

C

D


(mm.)

(mm.)

(mm.)

KZA-03PF-MW

G3/8

60

27

31

KZA-04PF-MW

G1/2

63

27

31

KZA-16PF-MW

M 16x1.5

57

27

31

KZA-20PF-MW

20x1.5

72

27

31

KZA-22PF-MW

22x1.5

60

27

31
