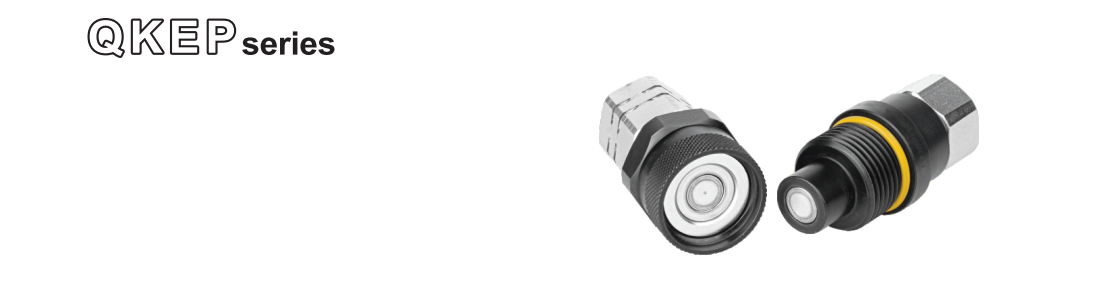

QKEP(STUCCHI VEP) FLAT-FACE THREAD TO CONNECT QUICK COUPLINGS

QKEP(STUCCHI VEP) FLAT-FACE THREAD TO CONNECT QUICK COUPLINGS INTERCHANGE WITH STUCCHI VEP-P/VEP-HD SERIES,DIXON VEP SERIES,DNP PST4/FSI SERIES,PARKER FET SERIES,WOSWINKEL FT SERIES
Availability:
Inquire

  • QKEP

  • NONE/QPE

1601279847(1)

Features

Connexion by screwing together the two parts

Disconnexion by unscrewing the two parts

Shut off by flat face valve

Connectable with male part under residual pressure (35MPa-5075PSI) without using tools

Disconnexion under pressure allowed

No spillage during Connexion and Disconnexion

Interchangeability Stucchi Market


Technical Specifications

High grade carbon steel tempered or carbonitrited for specific stressed area

Polyurethane and NBR Backup ring in PTFE

Working Temp:-25°C to +100°C (-13°F to +212°F)


Size
 Working pressure Flow Rate Burst Pressures
mm inch MPa (PSI) l/min (GPM) MPa (PSI) plug MPa (PSI) socket MPa (PSI)  conencted
6.3 1/4” 60 (8700) 12 (3.18) 60 (8700) 60 (8700) 150(21750)
10 3/8" 55 (7975) 23 (6.10) 55 (7975) 55 (7975) 140 (20300)
12.5 1/2” 55 (7975) 45 (11.93) 55 (7975) 55 (7975) 140 (20300)
20 3/4“ 55 (7975) 74 (19.61) 55 (7975) 55 (7975) 140 (20300)
25 ]“ 50 (7250) 100(26.50) 50 (7250) 50 (7250) 125(18125)
31.5 1 1/4" 47 (6815) 189(50.19) 47 (6815) 47 (6815) 120(17400)
40 1 1/2" 40 (5800) 288(76.32) 40 (5800) 40 (5800) 110(15950)
50 2" 35 (5075) 379(100.44) 35 (5075) 35 (5075) 110(15950)

86 - 副本图片5

Part No.

订货号

Thread

螺纹

E

F

G

Part No.

订货号

Thread

螺纹

E

F

G


(mm.)

(mm.)

(mm.)

(in.)

(in.)

(in-)

QKEP03-03SF

G3/8

65.8

30

41.8

QKEP03-N03SF

NPT3/8

2.59

1.18

1.65

QKEP03-04SF

G1/2

70.8

30

41.8

QKEP03-N04SF

NPT1/2

2.79

1.18

1.65

QKEP04-04SF

G1/2

77.8

36

49.8

QKEP04-N04SF

NPT1/2

3.06

1.42

1.96

QKEP04-06SF

G3/4

84.8

36

49.8

QKEP04-N06SF

NPT3/4

3.34

1.42

1.96

QKEP06-06SF

G3/4

84.8

41

53.8

QKEP06-N06SF

NPT3/4

3.34

1.61

2.12

QKEP06-08SF

G1

97.7

46

58.8

QKEP06-N08SF

NPT1

3.85

1.81

2.31

QKEP08-08SF

G1

99.7

46

58.8

QKEP08-N08SF

NPT1

3.93

1.81

2.31

QKEP08-10SF

G1-1/4

105.8

55

69.8

QKEP08-N10SF

NPT1-1/4

4.17

2.17

2.75

QKEP10-10SF

G1-1/4

106.8

55

69.8

QKEP10-N10SF

NPT1-1/4

4.2

2.17

2.75

QKEP12-10SF

G1-1/4

133.5

65

92

QKEP12-N10SF

NPT1-1/4

5.26

2.56

3.62

QKEP12-12SF

G1-1/2

133.5

65

92

QKEP12-N12SF

NPT1-1/2

5.26

2.56

3.62

QKEP16-16SF

G2

224.8

90

200

QKEP16-N16SF

NPT2

8.85

3.54

7.87

87 - 副本图片6

Part No.

订货号

Thread

螺纹

A

C

D

Part No.

订货号

Thread

螺竺

A

C

D


(mm.)

(mm.)

(mm.)

(in.)

(in.)

(in.)

QKEP03-03PF

G3/8

82.5

27

M33x2

QKEP03-N03PF

NPT3/8

3.25

1.06

M33x2

QKEP03-04PF

G1/2

85

27

M33x2

QKEP03-N04PF

NPT1/2

3.35

1.06

M33x2

QKEP04-04PF

G1/2

95

36

M40x3

QKEP04-N04PF

NPT1/2

3.74

1.42

M40x3

QKEP04-06PF

G3/4

97.4

36

M40x3

QKEP04-N06PF

NPT3/4

3.83

1.42

M40x3

QKEP06-06PF

G3/4

99

36

M45x3

QKEP06-N06PF

NPT3/4

3.90

1.42

M45x3

QKEP06-08PF

G1

113.6

46

M50x3

QKEP06-N08PF

NPT1

4.47

1.81

M50x3

QKEP08-08PF

G1

113.6

46

M50x3

QKEP08-N08PF

NPT1

4.47

1.81

M50x3

QKEP08-10PF

G1-1/4

123.4

55

M58x3

QKEP08-N10PF

NPT1-1/4

4.86

2.17

M58x3

QKEP10-10PF

G1-1/4

123.4

55

M58x3

QKEP10-N10PF

NPT1-1/4

4.86

2.17

M58x3

QKEP12-10PF

G1-1/4

150

65

M80x4

QKEP12-N10PF

NPT1-1/4

5.91

2.56

M80x4

QKEP12-12PF

G1-1/2

150

65

M80x4

QKEP12-N12PF

NPT1-1/2

5.91

2.56

M80x4

QKEP16-16PF

G2

218.4

90

M130x6

QKEP16-N16PF

NPT2

8.60

3.54

M130x6
