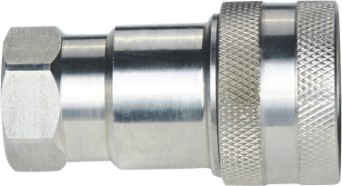

KZESS
NONE/QPE
Features
Connexion by pulling back the sleeve
Disconnexion by pulling back the female sleeve
Stainless steel poppet type
Connexion under pressure not allowed
Disconnexion under pressure not allowed
Interchangeability according to ISO 7241-1 part A
Technical Specifications
Stainless steel 304/316
Viton Backup ring in PTFE (sealings can be choosen)
working temperature:-20°C to + 200°C(-4°F to + 392°F)
Standard: ISO 7241-A
Size | Working pressure | Flow Rate | Burst Pressures | ||||
规格 | 工作压力 | 额定流量 | 爆破压力 | ||||
6.3 | 1/4" | 35 (5075) | 14 (3.08) | 140 (20300) | 200 (29000) | 200 (29000) | |
10 | 3/8〃 | 27 (3900) | 27 (5.9) | 110 (15950) | 110 (15950) | 160 (23200) | |
12.5 | 1/2" | 32 (4625) | 60 (15.9) | 150 (21750) | 130 (18850) | 130 (18850) | |
20 | 3/4" | 25 (3750) | 110 (29.1) | 100 (14500) | 105 (15225) | 165 (24000) | |
25 | 1“ | 21 (3025) | 150 (39.7) | 84 (12175) | 90 (13050) | 106 (15350) | |
40 | 1 1/2" | 14 (2025) | 750 (198.4) | 56 (8100) | 56 (8100) | 60 (8700) | |
50 | 2" | 9 (1300) | 1600 (423.3) | 38 (5500) | 40 (5800) | 45 (6525) | |
Part No. 订货号 | Thread 螺纹 | E | F | G | Part No. 订货号 | Thread 螺纹 | E | F | G |
(mm.) | (mm.) | (mm.) | (in.) | (in.) | (in-) | ||||
KZESS-02SF | G1/4 | 47.0 | 22.0 | 27.0 | KZESS-N02SF | NPT1/4 | 1.85 | 0.88 | 1.08 |
KZESS-03SF | G3/8 | 55.0 | 27.0 | 32.0 | KZESS-N03SF | NPT3/8 | 2.18 | 1.06 | 1.27 |
KZESS-04SF | G1/2 | 70.0 | 32.0 | 39.0 | KZESS-N04SF | NPT1/2 | 2.75 | 1.25 | 1.52 |
KZESS-22SF | M22X1.5 | 70.0 | 32.0 | 39.0 | KZESS-U34SF | UNF3/4 | 2.75 | 1.25 | 1.52 |
KZESS-06SF | G3/4 | 85.0 | 41.0 | 48.0 | KZESS-N06SF | NPT3/4 | 3.36 | 1.62 | 1.90 |
KZESS-08SF | G1 | 104.0 | 48.0 | 54.0 | KZESS-N08SF | NPT1 | 4.11 | 1.88 | 2.14 |
KZESS-10SF | G11/4 | 110.0 | 54.0 | 69.0 | KZESS-N10SF | NPT1 1/4 | 4.33 | 2.12 | 2.71 |
KZESS-12SF | G11/2 | 128.0 | 60.0 | 82.0 | KZESS-N12SF | NPT1 1/2 | 5.03 | 2.36 | 3.22 |
KZESS-16SF | G2 | 153.0 | 77.0 | 100.0 | KZESS-N16SF | NPT2 | 6.02 | 3.03 | 3.93 |
Part No. 订货号 | Thread 螺纹 | A | C | D | Part No. 订货号 | Thread 螺絞 | A | C | D |
(mm.) | (mm.) | (mm.) | (in-) | (in-) | (in-) | ||||
KZESS-02PF | G1/4 | 32.0 | 19.0 | 22.0 | KZESS-N02PF | NPT1/4 | 1.27 | 0.75 | 0.87 |
KZESS-03PF | G3/8 | 37.0 | 22.0 | 26.0 | KZESS-N03PF | NPT3/8 | 1.47 | 0.88 | 1.01 |
KZESS-04PF | G1/2 | 46.0 | 27.0 | 31.0 | KZESS-N04PF | NPT1/2 | 1.82 | 1.06 | 1.23 |
KZESS-22PF | M22X1.5 | 46.0 | 27.0 | 31.0 | KZESS-U34PF | UNF3/4 | 1.82 | 1.06 | 1.23 |
KZESS-06PF | G3/4 | 58.0 | 35.0 | 40.0 | KZESS-N06PF | NPT3/4 | 2.29 | 1.38 | 1.59 |
KZESS-08PF | G1 | 66.0 | 41.0 | 48.0 | KZESS-N08PF | NPT1 | 2.58 | 1.62 | 1.88 |
KZESS-10PF | G1 1/4 | 75.0 | 54.0 | 59.0 | KZESS-N10PF | NPT1 1/4 | 2.95 | 2.12 | 2.32 |
KZESS-12PF | G1 1/2 | 86.0 | 60.0 | 68.0 | KZESS-N12PF | NPT1 1/2 | 3.38 | 2.36 | 2.67 |
KZESS-16PF | G2 | 100.0 | 77.0 | 84.0 | KZESS-N16PF | NPT2 | 3.93 | 3.03 | 3.30 |
