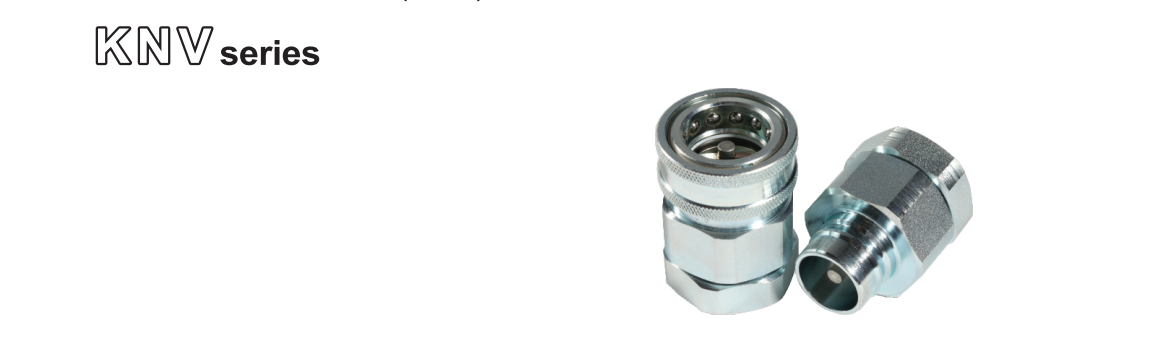

KNV
NONE/QPE
Features
Connexion by pulling back the sleeve
Disconnexion by pulling back the female sleeve
Shut off by poppet valve
Connexion under pressure not allowed
Disconnexion under pressure not allowed
Interchangeability US Market
Technical Specifications
High grade carbon steel with heat treated wear parts
Polyurethane and NBR Backup ring in PTFE
Working Temp:-25°C to +125°C(-13°F to +257°F)
Size | Working pressure | Flow Rate | Burst Pressures | |||
mm | inch | MPa (PSI) | l/min (GPM) | MPa (PSI) plug | MPa (PSI) socket | MPa (PSI) conencted |
6.3 | 1/4" | 27 (3915) | 22 (5.81) | 110 (15950) | 160 (23200) | 110 (15950) |
10 | 3/8" | 30 (4350) | 65 (17.17) | 160 (23200) | 180 (26100) | 120 (17400) |
12.5 | 1/2B | 22 (3190) | 75 (19.82) | 88 (12760) | 90 (4350) | 88 (12760) |
20 | 3/4“ | 19 (2755) | 170 (44.91) | 76 (11020) | 76 (11020) | 76 (11020) |
25 | 1" | 15 (2175) | 280 (73.98) | 60 (8700) | 60 (8700) | 60 (8700) |
31.5 | 1 1/4" | 10 (1450) | 450 (118.89) | 40 (5800) | 50 (7250) | 50 (7250) |
40 | 1 1/2" | 11 (1595) | 450 (118.89) | 45 (6525) | 45 (6525) | 45 (6525) |
50 | 2” | 10 (1450) | 1100 (290.62) | 40 (5800) | 40 (5800) | 40 (5800) |
Part No. 订货号 | Thread 螺纹 | E | F | G | Part No. 订货号 | Thread 螺纹 | E | F | G |
(mm.) | (mm.) | (mm.) | (in-) | (in.) | (in.) | ||||
KNV-02SF | G1/4 | 50 | 22 | 24 | KNV-N02SF | NPT1/4 | 1.97 | 0.87 | 0.94 |
KNV-03SF | G3/8 | 57 | 24 | 27 | KNV-N03SF | NPT3/8 | 2.24 | 0.94 | 1.06 |
KNV-04SF | G1/2 | 65 | 30 | 34 | KNV-N04SF | NPT1/2 | 2.56 | 1.18 | 1.34 |
KNV-06SF | G3/4 | 64 | 36 | 42 | KNV-N06SF | NPT3/4 | 2.52 | 1.42 | 1.65 |
KNV-08SF | G1 | 71 | 46 | 51 | KNV-N08SF | NPT1 | 2.80 | 1.81 | 2.01 |
KNV-10SF | G1 1/4 | 97 | 50 | 56 | KNV-N10SF | NPT1 1/4 | 3.82 | 1.97 | 2.20 |
KNV-12SF | G1 1/2 | 91 | 65 | 70 | KNV-N12SF | NPT1 1/2 | 3.58 | 2.56 | 2.76 |
KNV-16SF | G2 | 120 | 89 | 90 | KNV-N16SF | NPT2 | 4.02 | 3.50 | 3.54 |
Part No. 订货号 | Thread 螺纹 | A | C | D | Part No. 订货号 | Thread 螺纹 | A | C | D |
(mm.) | (mm.) | (mm.) | (in) | (in-) | (in-) | ||||
KNV-02PF | G1/4 | 49 | 22 | 10.8 | KNV-N02PF | NPT1/4 | 1.93 | 0.87 | 0.43 |
KNV-03PF | G3/8 | 57 | 24 | 12.9 | KNV-N03PF | NPT3/8 | 2.24 | 0.94 | 0.51 |
KNV-04PF | G1/2 | 63 | 30 | 16.0 | KNV-N04PF | NPT1/2 | 2.48 | 1.18 | 0.63 |
KNV-06PF | G3/4 | 64 | 36 | 23.3 | KNV-N06PF | NPT3/4 | 2.52 | 1.42 | 0.92 |
KNV-08PF | G1 | 68 | 46 | 29.7 | KNV-N08PF | NPT1 | 2.68 | 1.81 | 1.17 |
KNV-10PF | G1 1/4 | 91 | 50 | 36.1 | KNV-N10PF | NPT1 1/4 | 3.58 | 1.97 | 1.42 |
KNV-12PF | G1 1/2 | 85 | 65 | 43.5 | KNV-N12PF | NPT1 1/2 | 3.35 | 2.56 | 1.71 |
KNV-16PF | G2 | 98 | 89 | 56.8 | KNV-N16PF | NPT2 | 3.86 | 3.50 | 2.24 |
Features
Connexion by pulling back the sleeve
Disconnexion by pulling back the female sleeve
Shut off by poppet valve
Connexion under pressure not allowed
Disconnexion under pressure not allowed
Interchangeability US Market
Technical Specifications
High grade carbon steel with heat treated wear parts
Polyurethane and NBR Backup ring in PTFE
Working Temp:-25°C to +125°C(-13°F to +257°F)
Size | Working pressure | Flow Rate | Burst Pressures | |||
mm | inch | MPa (PSI) | l/min (GPM) | MPa (PSI) plug | MPa (PSI) socket | MPa (PSI) conencted |
6.3 | 1/4" | 27 (3915) | 22 (5.81) | 110 (15950) | 160 (23200) | 110 (15950) |
10 | 3/8" | 30 (4350) | 65 (17.17) | 160 (23200) | 180 (26100) | 120 (17400) |
12.5 | 1/2B | 22 (3190) | 75 (19.82) | 88 (12760) | 90 (4350) | 88 (12760) |
20 | 3/4“ | 19 (2755) | 170 (44.91) | 76 (11020) | 76 (11020) | 76 (11020) |
25 | 1" | 15 (2175) | 280 (73.98) | 60 (8700) | 60 (8700) | 60 (8700) |
31.5 | 1 1/4" | 10 (1450) | 450 (118.89) | 40 (5800) | 50 (7250) | 50 (7250) |
40 | 1 1/2" | 11 (1595) | 450 (118.89) | 45 (6525) | 45 (6525) | 45 (6525) |
50 | 2” | 10 (1450) | 1100 (290.62) | 40 (5800) | 40 (5800) | 40 (5800) |
Part No. 订货号 | Thread 螺纹 | E | F | G | Part No. 订货号 | Thread 螺纹 | E | F | G |
(mm.) | (mm.) | (mm.) | (in-) | (in.) | (in.) | ||||
KNV-02SF | G1/4 | 50 | 22 | 24 | KNV-N02SF | NPT1/4 | 1.97 | 0.87 | 0.94 |
KNV-03SF | G3/8 | 57 | 24 | 27 | KNV-N03SF | NPT3/8 | 2.24 | 0.94 | 1.06 |
KNV-04SF | G1/2 | 65 | 30 | 34 | KNV-N04SF | NPT1/2 | 2.56 | 1.18 | 1.34 |
KNV-06SF | G3/4 | 64 | 36 | 42 | KNV-N06SF | NPT3/4 | 2.52 | 1.42 | 1.65 |
KNV-08SF | G1 | 71 | 46 | 51 | KNV-N08SF | NPT1 | 2.80 | 1.81 | 2.01 |
KNV-10SF | G1 1/4 | 97 | 50 | 56 | KNV-N10SF | NPT1 1/4 | 3.82 | 1.97 | 2.20 |
KNV-12SF | G1 1/2 | 91 | 65 | 70 | KNV-N12SF | NPT1 1/2 | 3.58 | 2.56 | 2.76 |
KNV-16SF | G2 | 120 | 89 | 90 | KNV-N16SF | NPT2 | 4.02 | 3.50 | 3.54 |
Part No. 订货号 | Thread 螺纹 | A | C | D | Part No. 订货号 | Thread 螺纹 | A | C | D |
(mm.) | (mm.) | (mm.) | (in) | (in-) | (in-) | ||||
KNV-02PF | G1/4 | 49 | 22 | 10.8 | KNV-N02PF | NPT1/4 | 1.93 | 0.87 | 0.43 |
KNV-03PF | G3/8 | 57 | 24 | 12.9 | KNV-N03PF | NPT3/8 | 2.24 | 0.94 | 0.51 |
KNV-04PF | G1/2 | 63 | 30 | 16.0 | KNV-N04PF | NPT1/2 | 2.48 | 1.18 | 0.63 |
KNV-06PF | G3/4 | 64 | 36 | 23.3 | KNV-N06PF | NPT3/4 | 2.52 | 1.42 | 0.92 |
KNV-08PF | G1 | 68 | 46 | 29.7 | KNV-N08PF | NPT1 | 2.68 | 1.81 | 1.17 |
KNV-10PF | G1 1/4 | 91 | 50 | 36.1 | KNV-N10PF | NPT1 1/4 | 3.58 | 1.97 | 1.42 |
KNV-12PF | G1 1/2 | 85 | 65 | 43.5 | KNV-N12PF | NPT1 1/2 | 3.35 | 2.56 | 1.71 |
KNV-16PF | G2 | 98 | 89 | 56.8 | KNV-N16PF | NPT2 | 3.86 | 3.50 | 2.24 |
