U SERIES- UNIVERSAL AIR QUICK CONNECT/COUPLING

Specification
Body Size (inch) 1/4" 3/8" Seal Standard NBR(Nitrile)
Rated Pressure (psi) 150 Temperature Range -40°C to +120°C
Min. Burst Pressure(psi) - Coupler Only 2000 Vacuum 26" Hg (connected)
Min. Burst Pressure(psi) - Connected 8000 Thread Size 1/8" to 3/4"

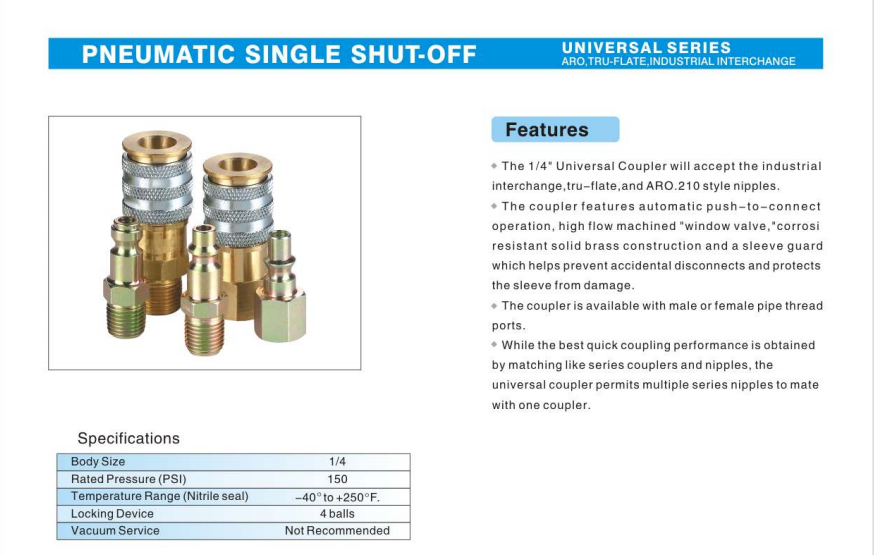

Feature
1. Body Materies: Zinc-Plated Steel, Brass, Stainless . Optional seal and
valve materials available.
2. Optional sleeve guards to prevent accidental snagging and disconnection.
3. Connection Style: Male Pipe, Female Pipe, Hose Barb, other styles & sizes available on your request.
4. Thread Type & Sizes: R(BSPT), G(BSPP), N(NPT) - 1/8" to 3/4"
5. Body Size: 1/4", 3/8"
Applications
U series are widely used to connect general purpose air lines and can also be used with low pressure fluids, such as Air tools,
automotive, compressed air, mechanical engineering, compressors, Compressed Air, Water, Grease, Paint, Limited Vacuum And Limited Gases.

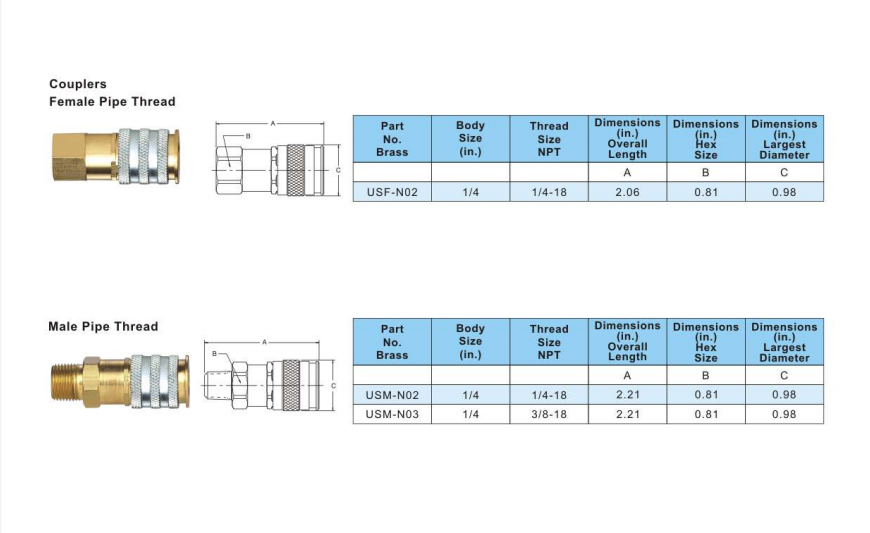

  • USF/USM
  • NONE/QPE/CUSTOMISED
