A Series - Aro 210 Interchange Air Quick Disconnect Coupling

Single Shut-Off Air Quick Disconnect
Conform To Aro 210 Standard


Specification
Body Size (inch) 1/4" Seal Standard NBR(Nitrile)
Rated Pressure (psi) 300 Temperature Range -40°C to +120°C
Min. Burst Pressure(psi) - Coupler Only 3000 Vacuum 26" Hg (connected)
Min. Burst Pressure(psi) - Connected 8000 Thread Size 1/8", 1/4", 3/8"

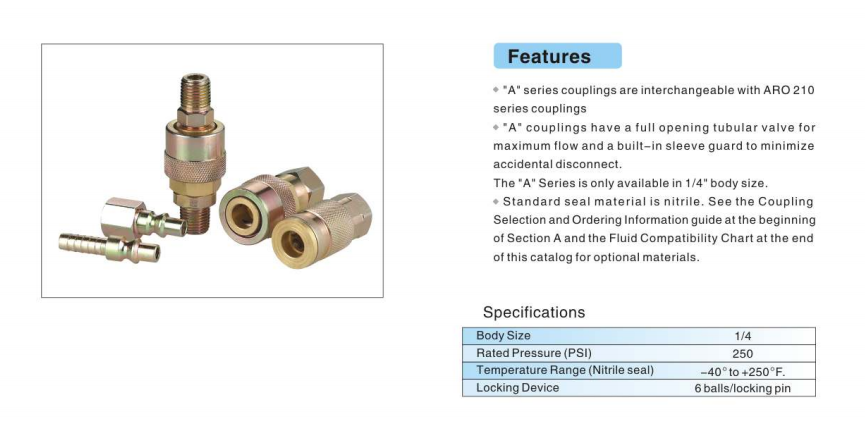

Feature
1. Body Materies: Zinc-Plated Steel, Brass(Optional Nickel-Plated Suffix "B"), Stainless Steel,
, Optional seal and valve materials available.
2. Optional sleeve guards to prevent accidental snagging and disconnection.
3. Connection Style: Male Pipe, Female Pipe, Hose Barb, other styles & sizes available on your request.
4. Thread Type & Sizes: R(BSPT), G(BSPP), N(NPT) - 1/8", 1/4", 3/8"
5. Body Size: 1/4"

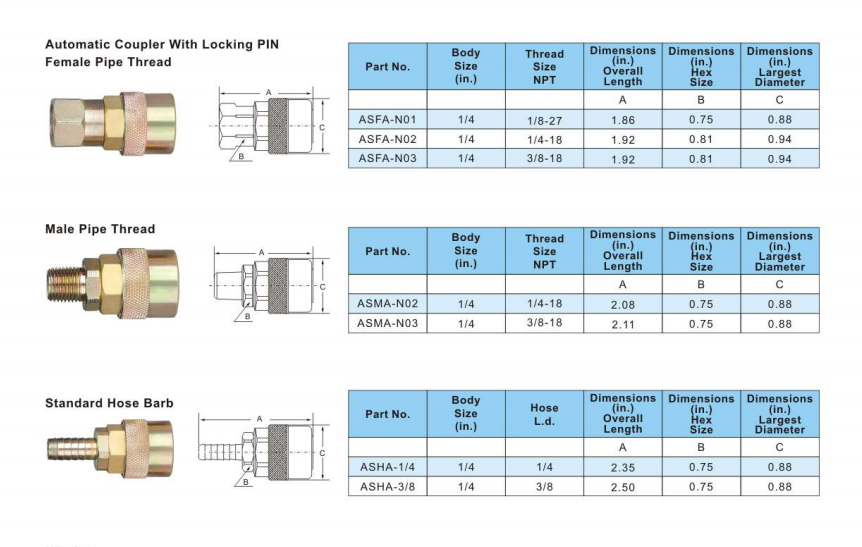

6. Ball Locking Automatic / Push To Connect version available, please see universal coupler series.
Availability:

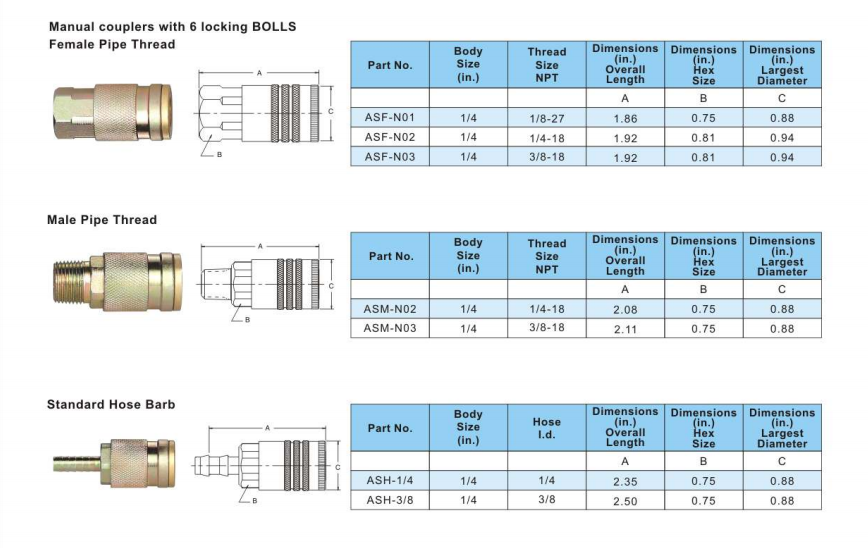

  • ASF/ASM/ASH

  • NONE/QPE/CUSTOMISED
