21 Series - European Industrial Mini Pneumatic Quick Release Couplings (DN 5)

Specification
Body Size (DN) 5 Seal Standard NBR(Nitrile)
Rated Pressure (psi) 350 Temperature Range -20°C to +120°C
Min. Burst Pressure(psi) - Coupler Only 3000 Vacuum 26" Hg (connected)
Min. Burst Pressure(psi) - Connected 8000 Thread Size 1/8" to 3/8"

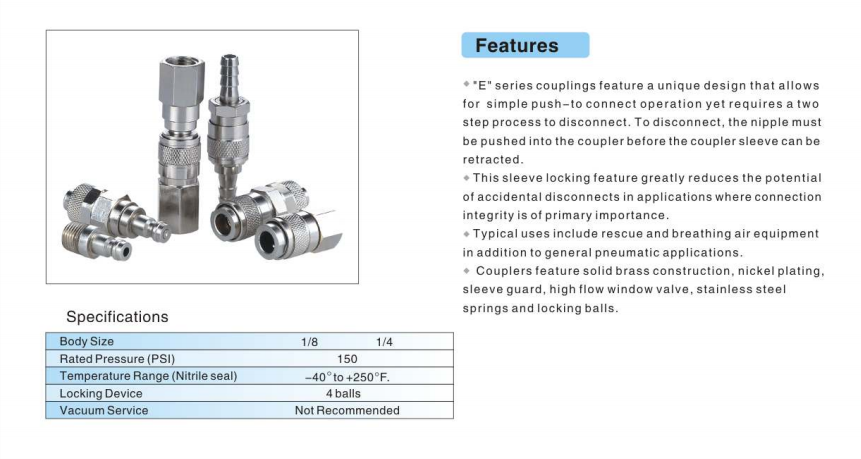

Feature
1. Body Materies: Zinc-Plated Steel, Brass(Optional Nickel-Plated Suffix B), Stainless Steel(Suffix SS). Optional seal and
valve materials available.
2. Safety lip(sleeve guards)prevents accidental disconnection. More efficient use of compressed air due to higher flows
and reduced pressure drop.
3. Connection Style: Male Pipe, Female Pipe, Hose Barb, other styles & sizes available on your request.
4. Thread Type & Sizes: R(BSPT), G(BSPP), N(NPT) - 1/8" to 3/8"
5. Body Size: 1/8"

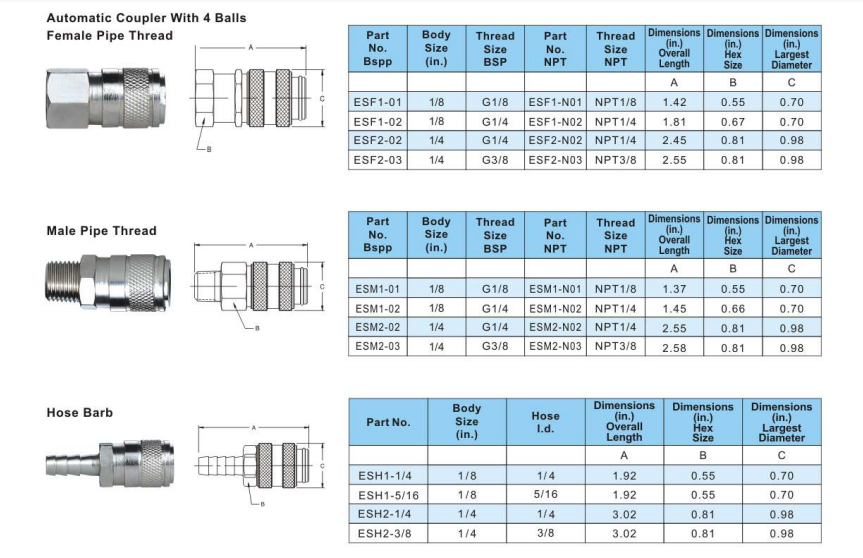

  • ESF/ESM/ESH
  • NONE/QPE/CUSTOMISED
