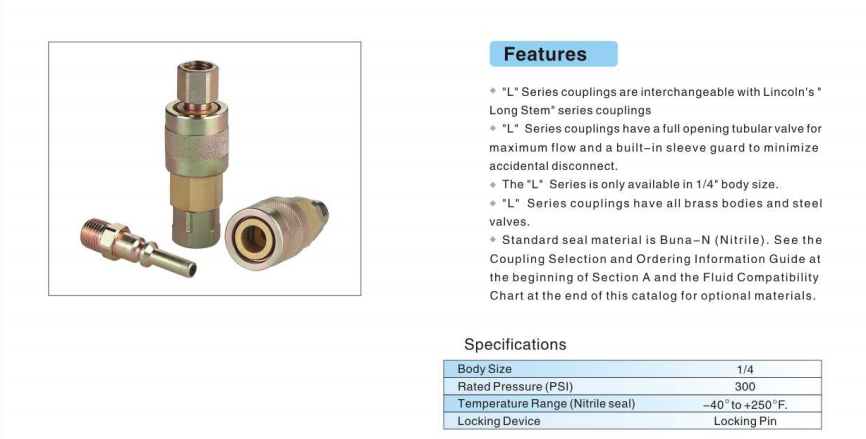

L series - Lincoln Long-Stem Interchange Air Quick Couplings

Specification
Body Size (inch) 1/4" Seal Standard NBR(Nitrile)
Rated Pressure (psi) 300 Temperature Range -40°C to +120°C
Min. Burst Pressure(psi) - Coupler Only 3000 Vacuum 26" Hg (connected)
Min. Burst Pressure(psi) - Connected 8000 Thread Size 1/8", 1/4", 3/8"
Feature
1. Body Materies: Zinc-Plated Steel, Brass(Optional Nickel-Plated Suffix B), Stainless Steel(Suffix SS). Optional seal and
valve materials available.
2. Optional sleeve guards to prevent accidental snagging and disconnection.
3. Connection Style: Male Pipe, Female Pipe, Hose Barb, other styles & sizes available on your request
4. Thread Type & Sizes: R(BSPT), G(BSPP), N(NPT) - 1/8" to 3/8"
5. Body Size: 1/4"
Availability:

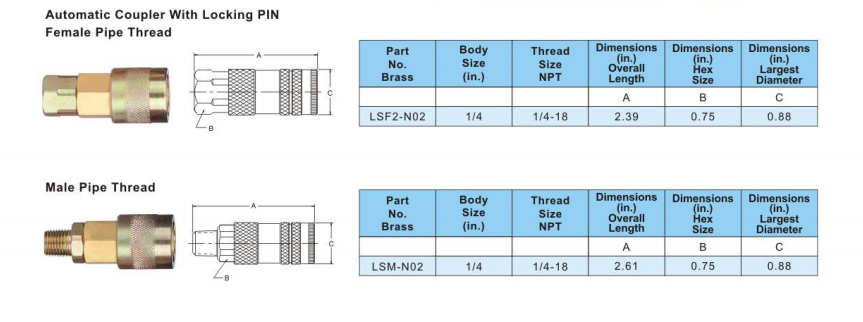

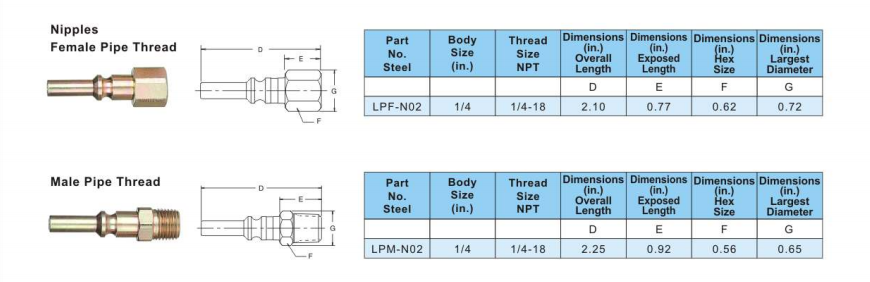

  • LSF/LSM
  • NONE/QPE/CUSTOMISED
