PARKER TC SERIES HIGH PRESSURE COUPLINGS

PARKER TC SERIES HIGH PRESSURE COUPLINGS INTERCHANGE WITH PARKER TC SERIES
TC Series couplings are used in high pressure applicationswith hydraulic and mechanical shock. Steel coupler sleeves
and nipple bodies are hardened for resistance to damage.Fluorocarbon seals along with PTFE back up rings provide
reliable sealing in high pressures. Available in 3/8 inch size only, with sleeve lock to guard against accidental
disconnection.
Availability:
Inquire

  • KTC

  • NONE/QPE

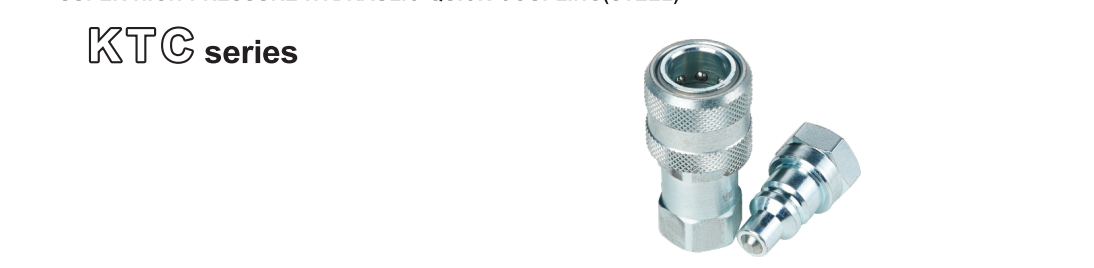

1601278325(1)

Features

Connexion by pulling back the sleeve

Disconnexion by pulling back the female sleeve

Shut off by poppet valve

Connexion under pressure not allowed

Disconnexion under pressure not allowed

Interchangeability according to Parker internal Standards


Technical Specifications

High grade carbon steel with heat treated wear parts

NBR Backup ring in PTFE

Working Temp:-25°C to +125°C (-13°FtO +257°F)



Size
 Working pressure Flow Rate                        Burst Pressures
mm inch MPa (PSI) l/min (GPM) MPa (PSI) plug MPa (PSI) socket MPa (PSI)  conencted
10 3/8” 70 (10000) 23 (6.0) 120 (17400) 120 (17400) 150 (21800)

82图片3

Part No.

订货号

Thread

螺纹

E

F

G


(mm.)

(mm.)

(mm.)

KTC-03SF

NPT3/8

62.5

24

32


83图片4

Part No.

订货号

Thread

螺纹

A

c

D


(mm.)

(mm.)

(mm.)

KTC-03PF

NPT3/8

44.3

24

28
